Pegboard Tool Wall: How to Plan, Build and Organize Yours

A pegboard tool wall is the single best upgrade you can make to a working garage. Everything off the bench, every tool visible and accessible, the whole wall organized in a way that actually makes sense for how you work. This guide covers everything you need to plan, buy, and set up a pegboard tool wall from scratch — no guesswork, no wasted trips to the hardware store.

What You Need Before You Buy Anything

Before you pick up a sheet of pegboard, answer these three questions:

1. How Much Wall Space Do You Have?

Measure the wall area you want to cover — width and height. A standard 4×8 sheet of pegboard covers 32 square feet and is the most common starting point for a single-car garage bay. Most people end up using 1-3 sheets depending on their tool collection. It’s better to plan for more space than you think you need — tools have a way of multiplying.

2. What Are You Hanging?

Make a rough list of every tool you want on the wall. Group them into categories:

• Power tools — circular saw, drills, jigsaw, router, sander
• Hand tools — hammers, wrenches, pliers, screwdrivers
• Accessories — battery packs, blade storage, extension cords
• Storage — shelves for small parts, bits, blades

This list determines how many hangers you need and which types to buy before you start drilling.

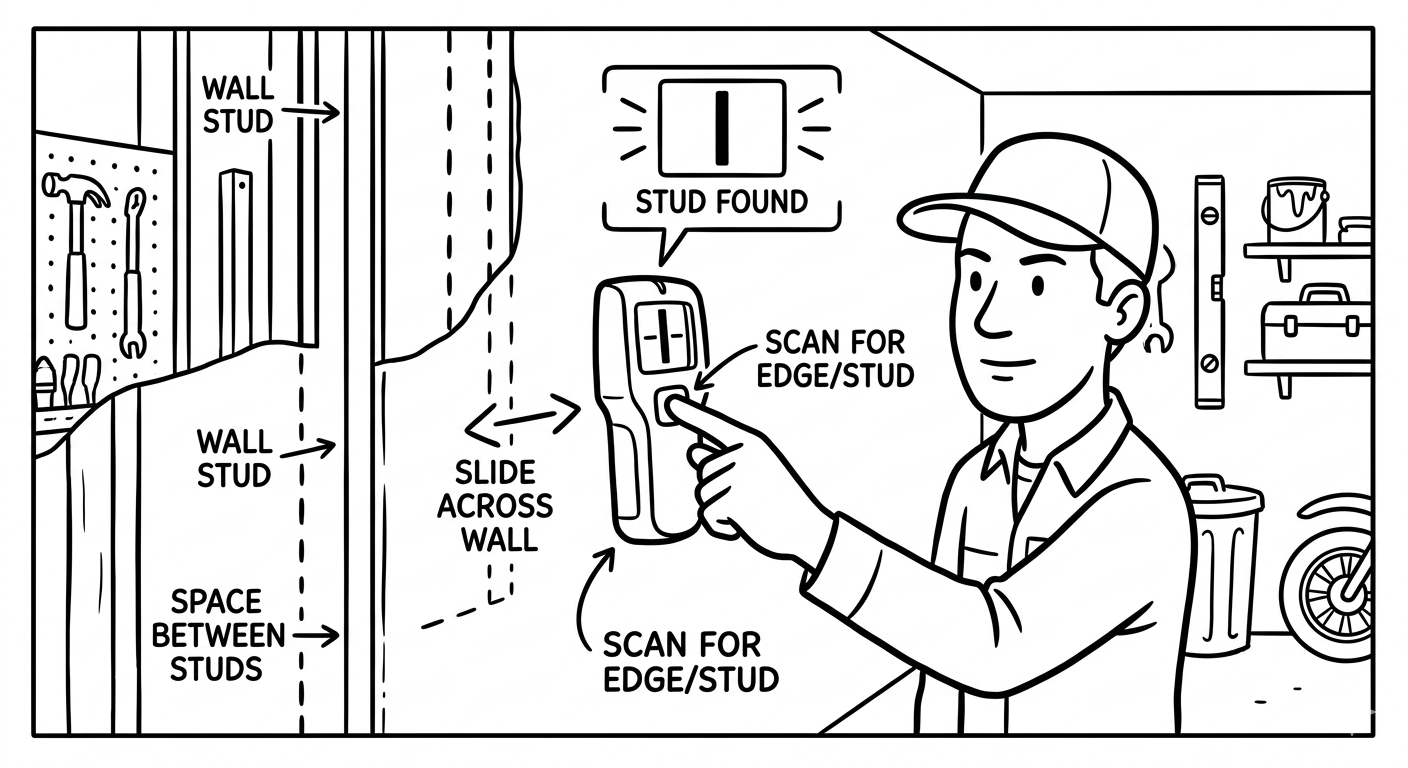

3. Where Are Your Studs?

Pegboard cannot mount directly to drywall — it needs either wall studs or a solid backer board. Use a stud finder and mark your studs before you do anything else. Standard stud spacing is 16″ on center. If your wall space doesn’t line up with studs, you’ll need a backer board (more on that below).

Common Pegboard Tool Wall Mistakes to Avoid

Not all pegboard is the same. Here’s what to look for:

Standard ¼” pegboard is the most common and works with the widest variety of hooks and hangers. This is what you want. It’s sold at Home Depot, Lowe’s, and most hardware stores in 4×8 sheets.

Hardboard pegboard is the most affordable option and works fine for light to medium loads. For heavier power tools, look for tempered hardboard or metal pegboard which handles more weight without flexing.

Hole spacing matters — standard pegboard has 1″ center-to-center hole spacing. Make sure any hangers you buy specify compatibility with standard 1″ spacing.

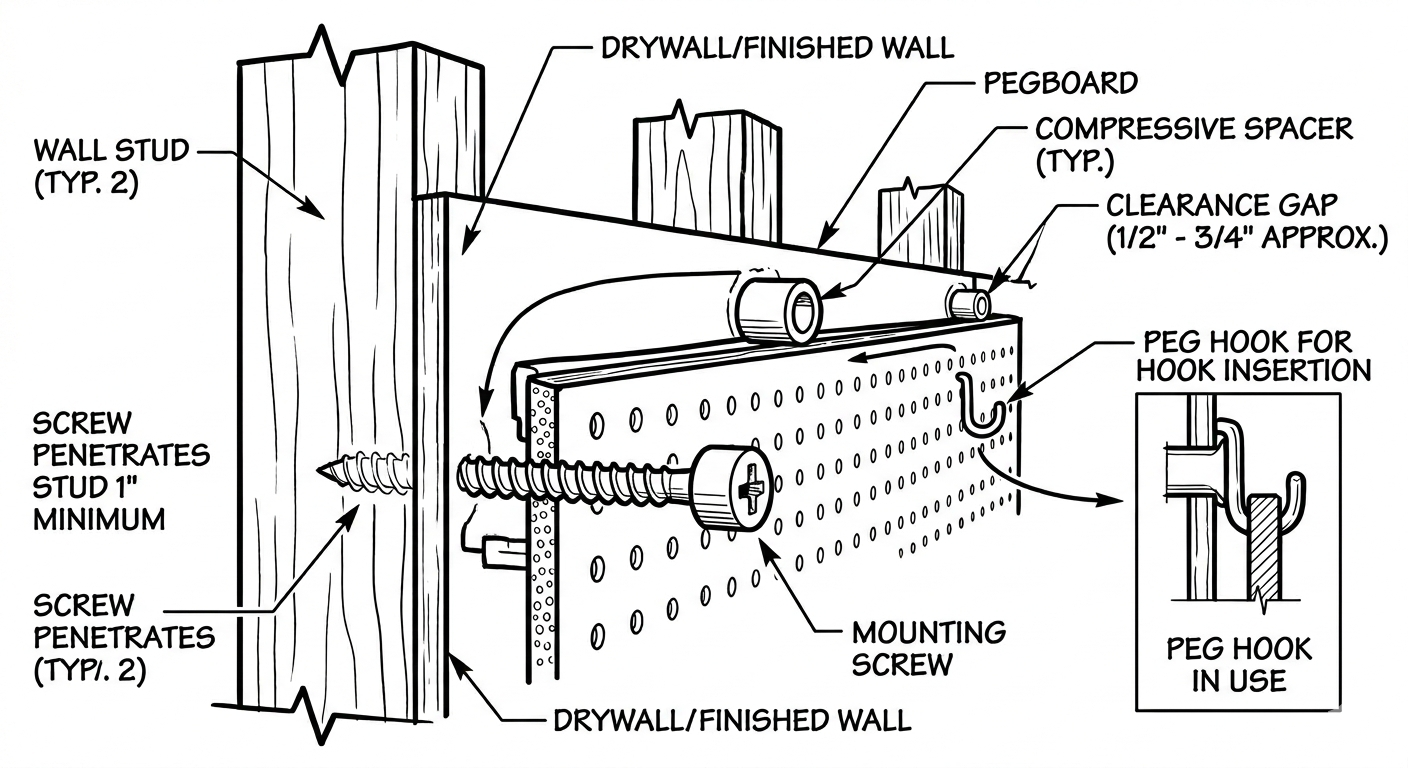

Mounting Your Pegboard the Right Way

This is where most DIYers cut corners and regret it. A circular saw weighs 10 lbs. A full drill with a 6Ah battery weighs 8 lbs. Mount your pegboard properly or you’ll be remounting it after the first heavy tool pulls it off the wall.

Option 1 — Direct to Studs

The simplest method. Use 2″ wood screws driven through the pegboard into the studs. Add pegboard spacers (small plastic or wood standoffs) between the pegboard and wall — these create the gap that lets hooks insert and lock properly. Without spacers, hooks won’t seat correctly.

Option 2 — Backer Board Frame

If your wall space doesn’t align with studs, build a simple frame from 1×3 or 1×4 lumber:

1. Cut top, bottom, and vertical pieces to frame the pegboard area
2. Screw the frame into studs wherever possible
3. Attach the pegboard to the frame

This method also creates the necessary gap behind the pegboard automatically.

Height Considerations for Pegboard Tool Wall

Mount the bottom of your pegboard at waist to chest height — this puts your most-used tools in the easiest grab zone. If you’re mounting floor to ceiling, put your heaviest and most-used tools in the middle section, lighter or less-used items up top.

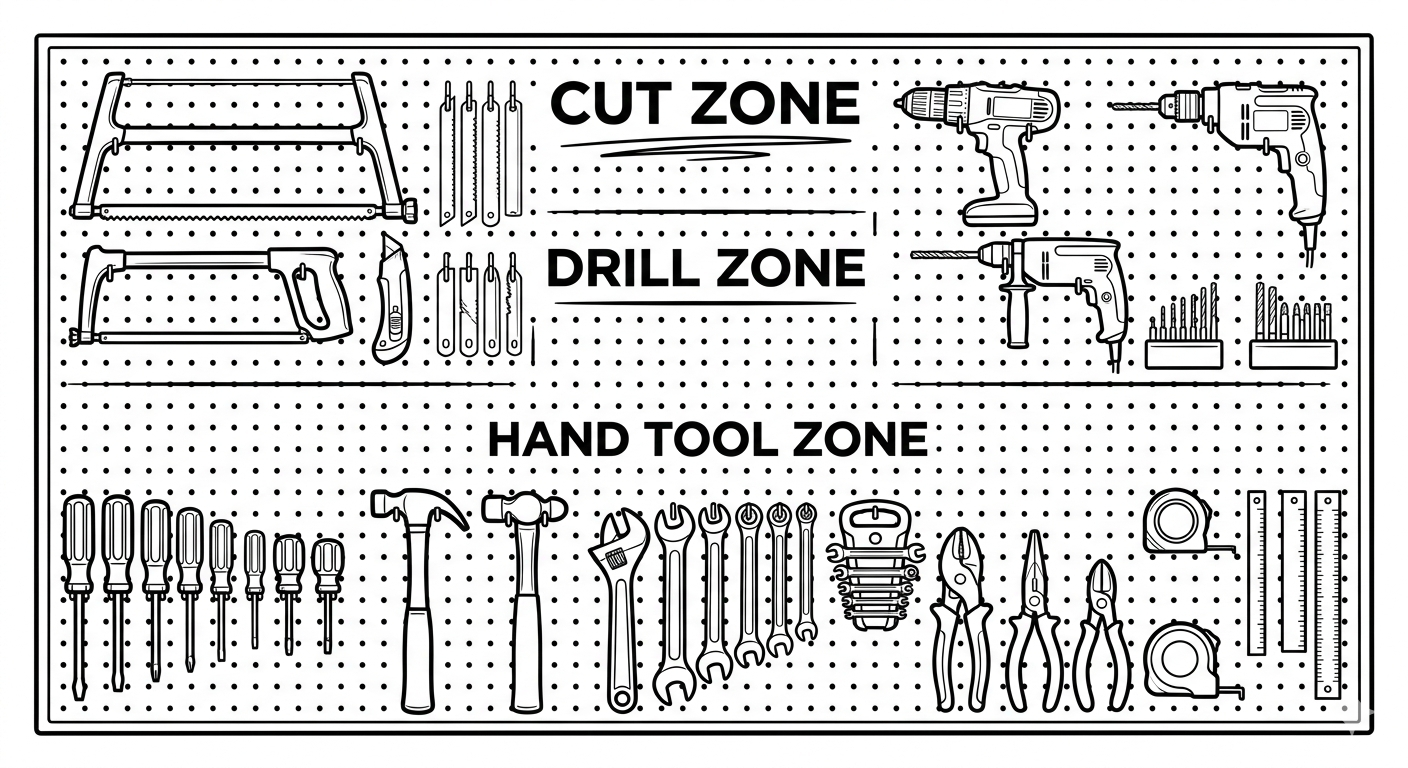

Planning Your Tool Layout Before You Hang Anything

The biggest mistake people make is hanging tools randomly and then realizing the layout doesn’t work. Spend 10 minutes planning first.

Group by workflow, not by tool type. Instead of “all power tools together,” think about how you actually work:

• Cut zone — circular saw, jigsaw, blades, measuring tape
• Drill zone — drill, impact driver, battery packs, drill bits
• Finish zone — sander, router, detail tools
• Hand tool zone — hammers, wrenches, pliers, screwdrivers

Put your most-used tools at eye level and arm’s reach. Your drill and circular saw should be the easiest grab on the wall. Tools you use monthly can go higher or to the edges.

Leave room to grow. Don’t fill every hole on day one. A crowded pegboard is hard to update and looks cluttered. Aim for 70-80% coverage and leave breathing room.

Which Hangers to Buy for Each Tool for your Pegboard Tool Wall

This is where generic pegboard setups fail. Standard S-hooks and wire hooks are designed for hand tools — they can’t handle the weight or shape of power tools. Purpose-built hangers make the difference between a tool wall that works and one that’s constantly sagging, falling, or frustrating to use.

Here’s what to use for each tool category:

All Tool Hangerz hangers are made in the USA from heavy-gauge steel with a powder coat finish. They fit standard ¼” pegboard and slatwall, install in under 60 seconds, and are built to hold full tool weight with batteries attached — no drooping, no falling, no plastic.

Step-by-Step Setup Checklist

1. Find and mark your studs with a stud finder
2. Cut pegboard to size if needed — a circular saw with a fine-tooth blade makes clean cuts
3. Install spacers or build a frame to create the gap behind the board
4. Mount the pegboard to studs with 2″ screws — check for level before final tightening
5. Plan your layout on paper before inserting any hooks
6. Install your heaviest hangers first — circular saw, drills — then work outward
7. Add shelves for blade storage, bits, small parts
8. Hang your tools and adjust — pegboard is infinitely reconfigurable, so don’t stress about getting it perfect on the first try

Common Pegboard Tool Wall Mistakes to Avoid

• Skipping the spacers — hooks won’t seat without a gap behind the board
• Mounting to drywall only — heavy tools will pull it off the wall
• Using generic S-hooks for power tools — they’re not designed for the weight or shape
• Overcrowding — leave room so you can grab tools without knocking others off
• No plan before hanging — spend 10 minutes planning zones before you insert the first hook
• Putting rarely-used tools at eye level — prime real estate goes to your most-reached-for tools

Frequently Asked Questions

How much does it cost to set up a pegboard tool wall?
A 4×8 sheet of pegboard runs $25-40 at Home Depot. Mounting hardware (screws, spacers) is another $10-15. Hangers depend on your tool collection — budget $50-100 for a solid set of purpose-built hangers. Total for a basic setup: $85-155. The Complete Pegboard Tool Wall Kit at $74.99 covers the hangers portion in one purchase.

Can I use pegboard in a humid garage?
Standard hardboard pegboard absorbs moisture over time and can warp in very humid environments. If your garage gets damp, look for tempered hardboard or metal pegboard. Your hangers should be powder-coated steel — bare metal hooks will rust quickly in humidity.

How much weight can pegboard hold?
Properly mounted pegboard on studs handles 100+ lbs easily. The limiting factor is usually the individual hook or hanger, not the board itself. Heavy-gauge steel hangers rated for power tools are important — generic wire hooks are not.

Can I paint my pegboard?
Yes — latex paint works fine on hardboard pegboard. Paint before mounting for the cleanest result. Keep holes clear by poking through with a nail or dowel while paint is still wet.

Does pegboard work on slatwall too?
All Tool Hangerz hangers work on both standard ¼” pegboard and slatwall. Slatwall is more expensive but slightly stronger and has a cleaner look — personal preference either way.

How do I keep hooks from falling out?
Purpose-built two-peg hangers like Tool Hangerz lock into two holes simultaneously — they won’t pull out or rotate under load the way single-peg hooks do. If you’re using standard single hooks, hook locks are available to prevent them from backing out.
